NVIDIA HGX™ B200 8-GPU 1,800GB/s GPU-to-GPU bandwidth with NVIDIA® NVLink™ and NVSwitch™ Dual AMD EPYC™ 9005/9004 Series Processors 12-Channel DDR5 RDIMM, 24 x DIMMs 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
The NVIDIA HGX™ B200 propels the data center into a new era of accelerating computing and generative AI, integrating NVIDIA Blackwell Tensor Core GPUs with a high-speed interconnect to accelerate AI performance at scale. Configurations of eight GPUs deliver unparalleled generative AI acceleration alongside a remarkable 1.4 terabytes (TB) of GPU memory and 64 terabytes per second (TB/s) of memory bandwidth for 15X faster real-time trillion-parameter-model inference, 12X lower cost, and 12X less energy. This extraordinary combination positions HGX B200 as a premier accelerated x86 scale-up platform designed for the most demanding generative AI, data analytics, and high-performance computing (HPC) workloads. HGX B200 supports advanced networking options—at speeds up to 400 gigabits per second (Gb/s)—delivering the highest AI performance with NVIDIA Quantum-2 InfiniBand and the Spectrum™-X Ethernet platform. HGX B200 with NVIDIA® BlueField®-3 data processing units (DPUs) enable cloud networking, composable storage, zero-trust security, and GPU compute elasticity in hyperscale AI clouds.
| Motherboard | |
| Part number | MZB3-PE0 |
| Processor | |
| CPU | AMD EPYC™ 9005 Series Processors |
| Socket | SP5 |
| TDP | up to 500W |
| System memory | |
| Memory maximum Capacity | N/A |
| Memory Slots | 24 x DDR5 DIMM |
| Memory Type | DDR5 DIMM |
| Error Detection (ECC) | Yes |
| Input/output | |
| Network | Front (I/O board – CFPG540): 2 x 10Gb/s LAN (1 x Intel® X710-AT2) – Support NCSI function 1 x 10/100/1000 Mbps Management LAN Rear (MLAN board – CDB66): |
| USB | 2 x USB 3.2 Gen1 ports (Type-A) |
| Video | 1 x VGA |
| Expansion slots | |
| PCIe | PCIe Bridge Board – CBG76: – 8 x FHHL x16 (Gen5 x16), from PEX89104 PCIe Bridge Board – CPBG045 x 2: |
| Dimensions | |
| Form Factor | 8U |
| Height | 351 mm |
| Width | 447 mm |
| Depth | 900 mm |
| GPU | |

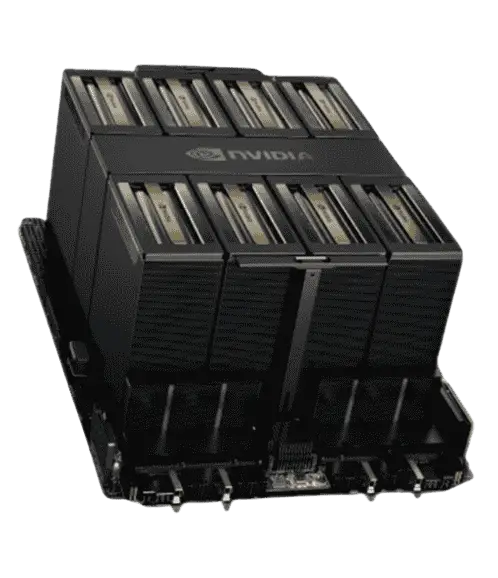

| GPU | NVIDIA HGX™ B200 with 8 x SXM GPUs |
| Storage | |
| Drive Bays | Front hot-swap: 8 x 2.5″ Gen5 NVMe |
| M.2 | 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1 1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0 |
| Power supply | |
| Certification | Titanium |
| Power | 36000 W |
