NVIDIA Ada Lovelace Architecture

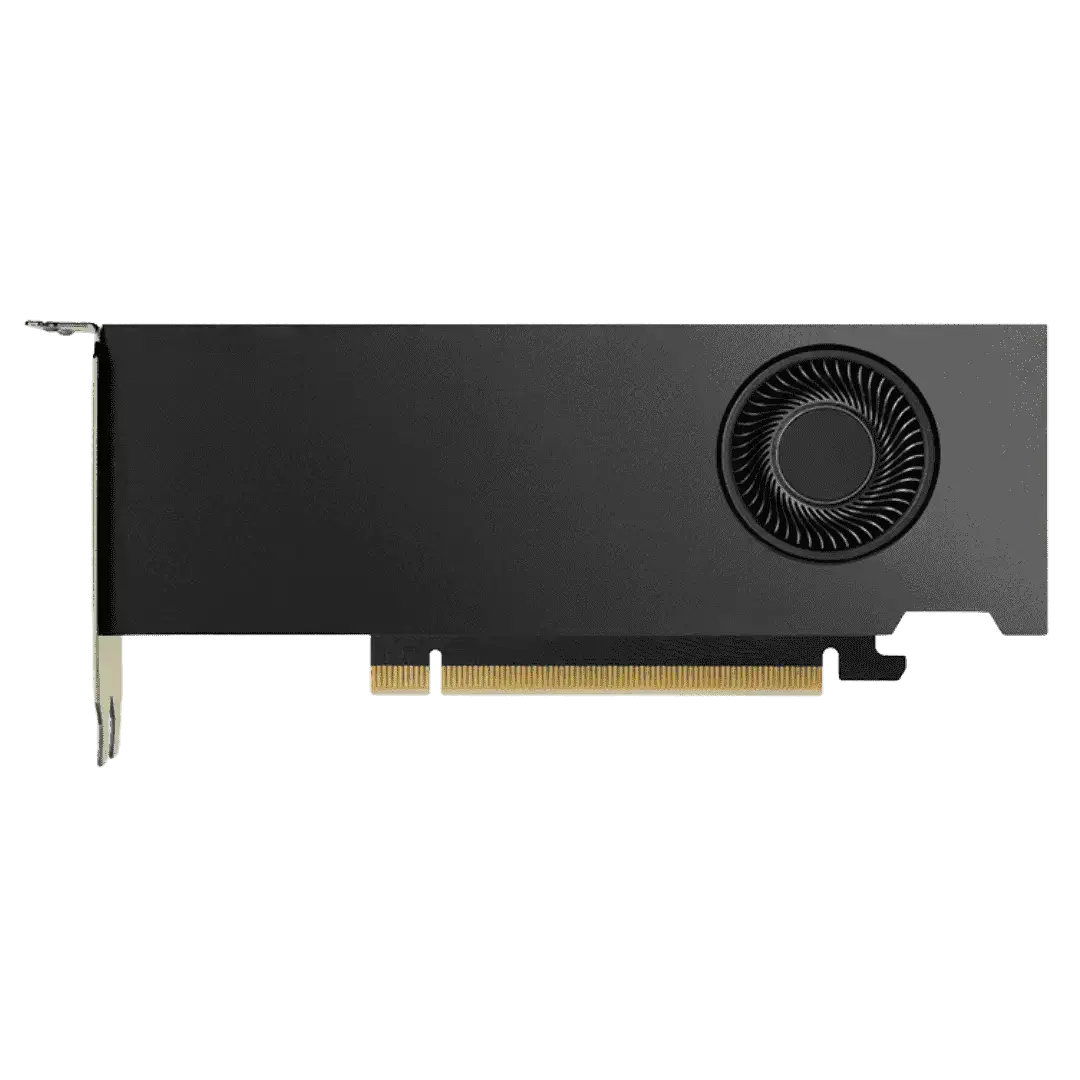

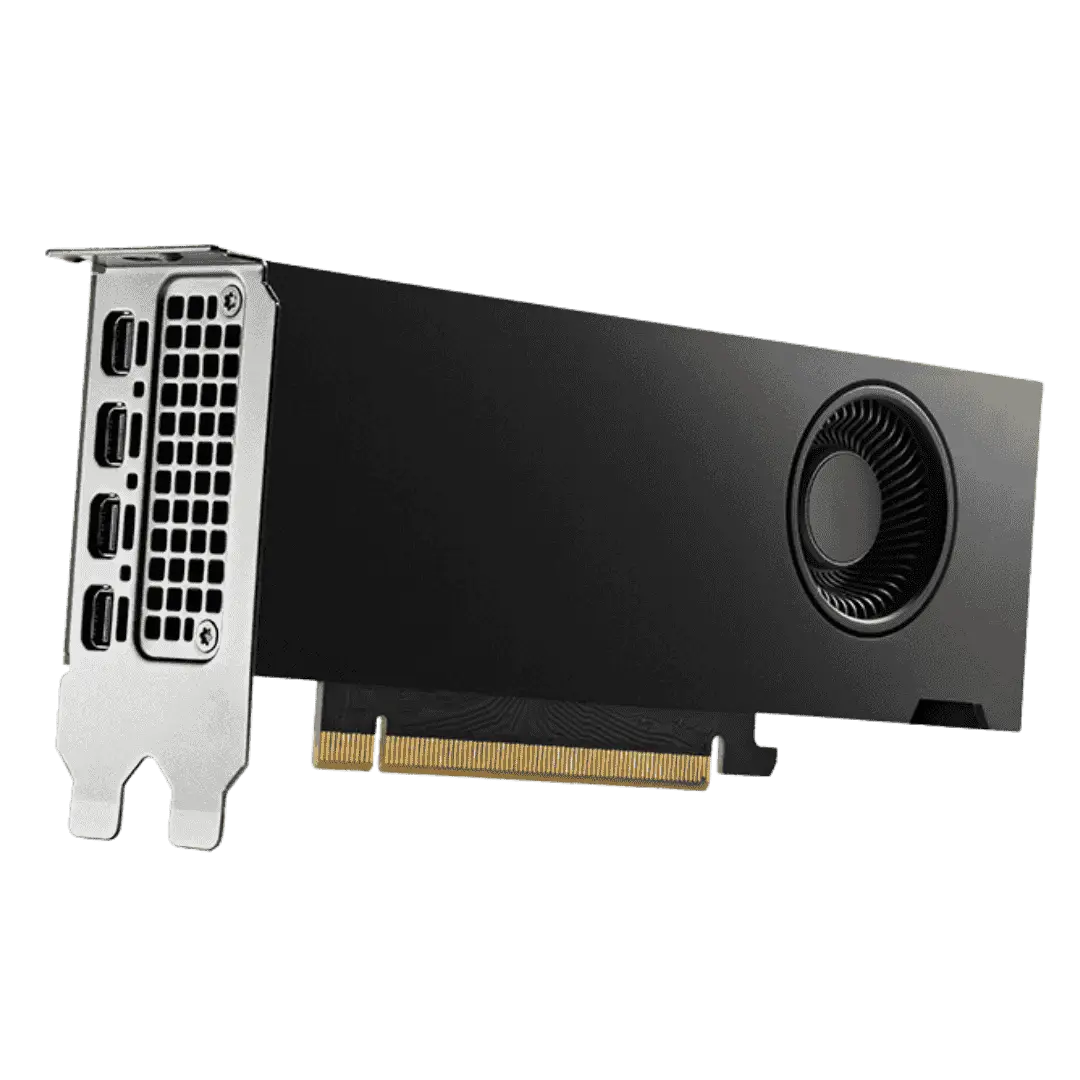

NVIDIA RTX 4000 SFF Ada is the most powerful dual slot, low profile workstation GPU offering high-performance, real-time ray tracing, AI-accelerated compute, and professional graphics rendering, all of this in a compact design with unmatched performance. Building upon the major SM enhancements from the Ada Lovelace GPU, the NVIDIA Ada Lovelace architecture provides more cores, higher clocks, and a larger L2 cache for more performance to enhance ray tracing operations, tensor matrix operations, and frame rates with DLSS 3.0.
In recent years, the demand for smaller footprint workstations has been skyrocketing, fueled by an array of factors, including cutting-edge hardware advancements, the extreme miniaturization of components, an increase in remote and mobile workforces, and the need for more energy efficient solutions suited for space available in modern offices and data centers. To meet this growing demand, NVIDIA has introduced the NVIDIA RTX™ 4000 SFF Ada Generation, the most powerful GPU on the market for Small Form Factor (SFF) workstations. Built on the revolutionary NVIDIA Ada Lovelace GPU architecture, the RTX 4000 SFF Ada brings new levels of performance, features, and capabilities to compact workstations, continuing to drive the evolution of visual computing for professionals. Designed for the needs of artists, architects, designers, and engineers across industries, the RTX 4000 SFF Ada is the ultimate compact computing solution to help you take your work to the next level
| Architecture | NVIDIA Ada Lovelace Architecture |
| Process Size | 4nm NVIDIA Custom Process | TSMC |
| Die Size | 294.5 mm2 |
| Transistors | 35.8 Billion |
| CUDA Cores | 6144 |
| Tensor Cores | 192 | Gen 4 |
| RT Cores | 48 | Gen 3 |
| FP32 Performance1 | 19.2 TFLOPS |
| Tensor Performance1 | 306.8 TFLOPS2 |
| RT Core Performance1 | 44.3 TFLOPS |
| GPU Memory | 20 GB GDDR6 ECC |
| Memory Interface | 160-bit |
| Memory Bandwidth | 320 GB/s |

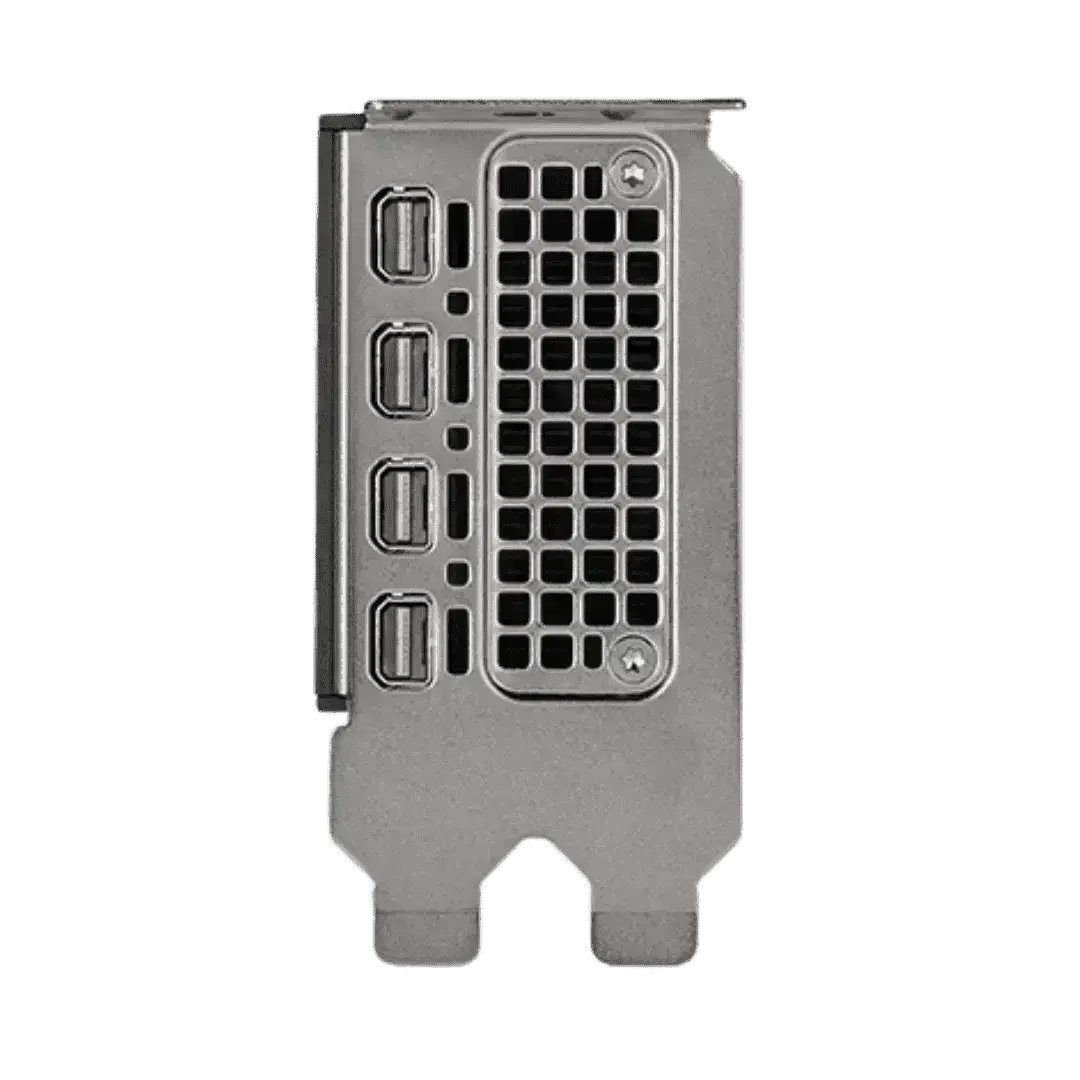

| Display Connectors | mDP 1.4a (4)3 |
| Graphics Bus | PCI Express 4.0 x16 |
| Form Factor | 2.7” H x 6.6”L | Low Profile Dual Slot |
| Thermal Solution | Active Fansink |
| AR/MR/VR/XR Capable | Yes |
| NVIDIA 3D Vision and 3D Vision Pro | Support via Optional 3-pin mini-DIN |
| Frame Lock | Compatible with NVIDIA Quadro Sync II |
| Maximum Power Consumption | 70W | No Auxiliary Power Required |
| NVENC | NVDEC | 2x | 2x | Includes AV1 encode and Decode |
