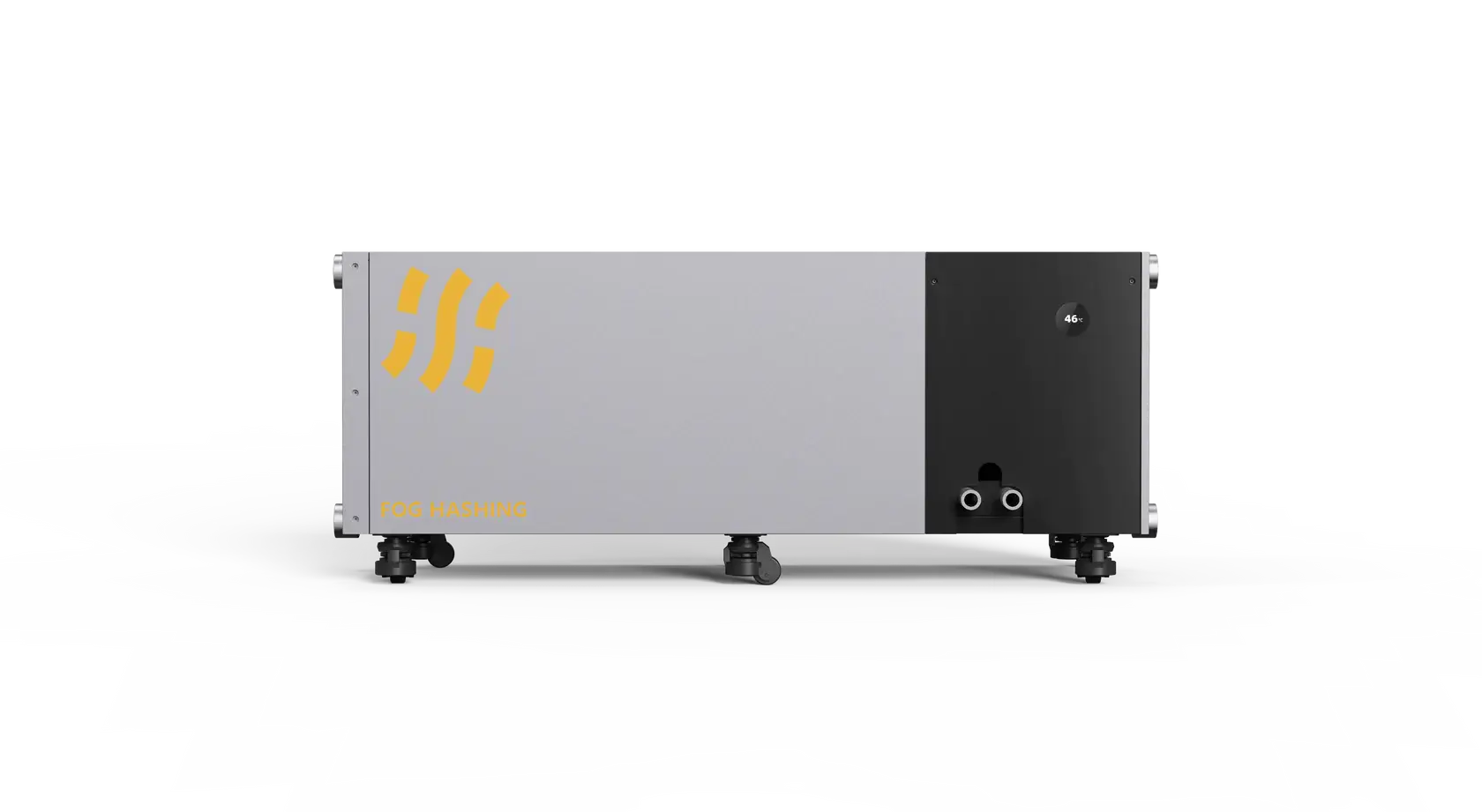

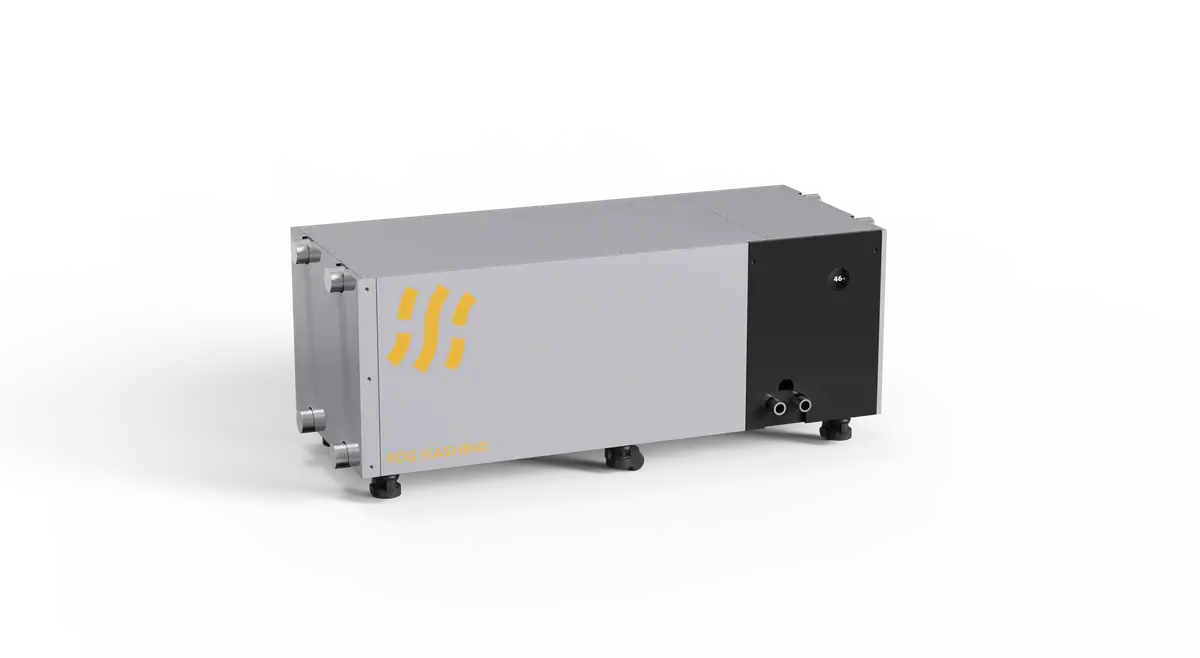

Fog Hashing Immersion Cooling Kit B6D & B6R Rack

0 out of 5 (0)

✓ Outer Size: 1420(L) x 575(W) x 620(H) mm

✓ N.W. / G.W. (B6): 130kg / 180kg

✓ N.W. / G.W. (B6D): 110kg / 166kg

✓ Total Weight: 230kg (with coolant and miners)

✓ Input Voltage: 3-phase 350-480V 50/60Hz, Single-phase 200-277V 50/60Hz

✓ Output Voltage: Single-phase 200-277V 50/60Hz

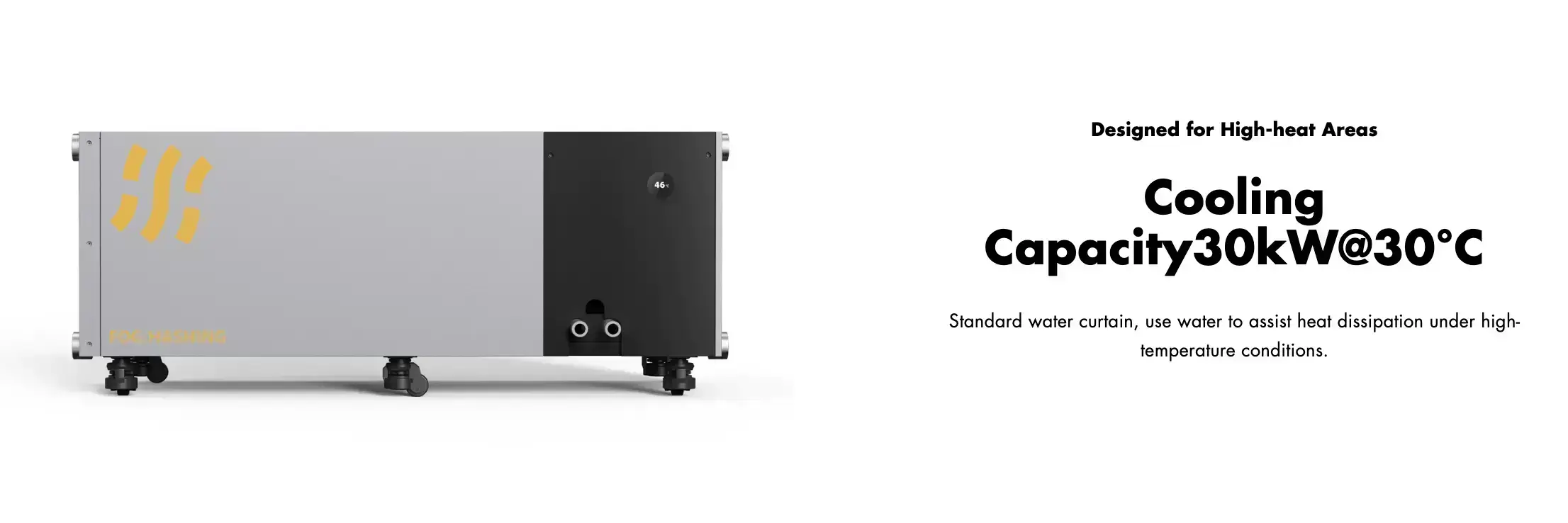

✓ Cooling Capacity: 30kW @ 30°C

✓ Power Usage: 400W (Max)

✓ Operating Temperature: -10°C to 40°C

✓ Display: 1.32” OLED Screen

✓ Coolant Volume: 174L

✓ Capacity: 6 ASIC Miners

✓ Network: 100Mbps Ethernet Switch

✓ External Cooling: Dry Cooler/Water Cooling Tower

✓ Pipe Diameter: DN25 (External Thread Diameter 32mm)

✓ Max Inlet/Outlet Temp: 45/60°C

✓ Noise (INoise): 55dB(A) at 10m Distance

Select a Variant to Purchase:

Clear

B6D Tank+Dry cooler

B6D Tank+Dry cooler+Coolant

B6R

Get this product for

$706.00 - $6,116.00

Get it in 10 days

Estimate for 682345

Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

Description Specifications Download Reviews (0)

Description

Specifications

B6D Tank (Technical Specifications)	Value
Outer Size	1420(L) x 575(W) x 620(H) mm
N.W. / G.W. (B6)	130kg / 180kg
N.W. / G.W. (B6D)	110kg / 166kg
Total Weight	230kg (with coolant and miners)
Input Voltage	3-phase 350-480V 50/60Hz
	Single-phase 200-277V 50/60Hz
Output Voltage	Single-phase 200-277V 50/60Hz
Cooling Capacity	30kW @ 30°C
Power Usage	400W (Max)
Operating Temperature	-10°C to 40°C
Display	1.32” OLED Screen
Coolant Volume	174L
Capacity	6 ASIC Miners
Network	100Mbps Ethernet Switch
External Cooling	Dry Cooler/Water Cooling Tower
Pipe Diameter	DN25 (External Thread Diameter 32mm)
Max Inlet/Outlet Temp	45/60°C
Noise (INoise)	55dB(A) at 10m Distance

B6D Dry Cooler (Technical Specifications)	Value
Outer Size	1560(L) x 440(W) x 952(H) mm
N.W. / G.W.	117kg / 133kg
Input Voltage	Single-phase 200-240V 50/60Hz
Heat Transfer	30kW @ 25°C
	20kW @ 35°C
Operating Temperature	-10°C to 40°C
Coolant Capacity	14L
Power	580W x 2
Air Volume	13,000m³/h
Noise	71dB(A) at 10m Distance
Pipe Diameter	DN25 (External Thread Diameter 32mm)
Pipeline Length	5m x 2
